What Makes a Backboard Unbreakable? A Guide to Safer, Smarter Systems
Backboards in gyms and arenas have come a long way, particularly when it comes to safety and durability. At one time, it wasn’t uncommon for a hard dunk or a flexing rim to result in a shattered glass backboard. Understanding how those failures happened, and what’s been done to prevent them, is key to making smart equipment decisions for schools, recreational centers, and sports facilities.
How Backboards Used to Be Made
Older glass backboards were typically a single, half-inch-thick pane of tempered glass mounted between two steel plates. Rubber grommets were used to cushion the glass where bolts passed through it, attempting to reduce pressure and movement. But even slight flexing of the steel could transfer force to the glass, causing it to break.
When breakage occurred, the glass would often fall dangerously to the floor or onto players. While tempered glass doesn’t shatter into sharp shards like standard glass, it still posed safety risks and required immediate replacement.
A Different Approach to Backboard Construction
SNA Sports was one of the first manufacturers to change the way glass backboards were built, eliminating the need to bolt through the glass entirely. In SNA’s design, the glass is cut away where the rim attaches, so the steel mounting plate doesn’t contact or pass through the glass. This isolates the rim’s pressure to the steel support structure.
As a result, if a failure occurs, it happens at the welds or the steel, not the glass. And because the glass is suspended by the frame, it’s protected from the stress of play. The only realistic way the glass could break is from a direct impact, and in that case, it behaves like a car windshield, crumbling safely rather than shattering.
Comparing Glass, Acrylic and Polycarbonate Backboards
Different materials are used in backboards, each with its own strengths and limitations:
- Tempered Glass: Offers the clearest visibility, best rebound performance, and long-term durability. It doesn’t fog, fade, or degrade with age. Glass also provides a “true” rebound, which is critical for consistent play at all levels. This is the gold standard.
- Polycarbonate (PC): Highly durable and nearly unbreakable, but significantly more expensive. Its clarity can degrade over time due to UV exposure, and it tends to absorb impact, leading to a flat or deadened rebound.
- Acrylic: Less expensive than PC and still impact-resistant, but also prone to yellowing and cracking over time. Like PC, acrylic doesn’t provide the same bounce or responsiveness as glass.
Because PC and acrylic boards are more forgiving under stress, they’re often used in outdoor or unsupervised settings, like public parks or middle school playgrounds, where equipment may see rough or constant use. However, both materials eventually degrade with exposure to sunlight and weather.
Performance and Longevity Considerations
When evaluating long-term value, tempered glass often emerges as the most cost-effective option for indoor use. A polycarbonate board may cost about twice the amount of glass and smaller framed acrylic boards usually cost more than similarly sized glass options.
Glass also outperforms these materials in maintaining visual clarity and structural integrity over time.
What Makes a Portable Backboard Different?

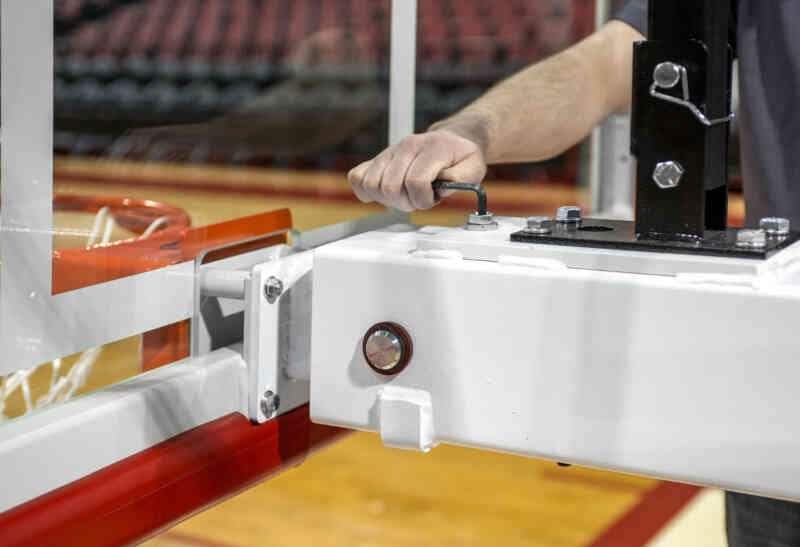

In portable basketball systems, the design plays an even larger role. In portable systems like SNA’s, the support beam connects directly behind the rim mount, anchoring the structure while allowing the glass to float in the frame. This helps the unit absorb force more efficiently and keeps the glass isolated from direct stress.
The Bottom Line
Backboard design isn’t just about materials, it’s also about engineering. Choosing the right combination of material and mounting structure can dramatically reduce long-term maintenance, improve safety, and enhance the playing experience. Tempered glass, when properly mounted, remains the preferred material for consistent play and visual clarity, especially in indoor and supervised environments.
Facilities looking for long-term durability with minimal replacement needs should weigh both construction methods and materials carefully, especially when considering how a backboard will be used over time.
